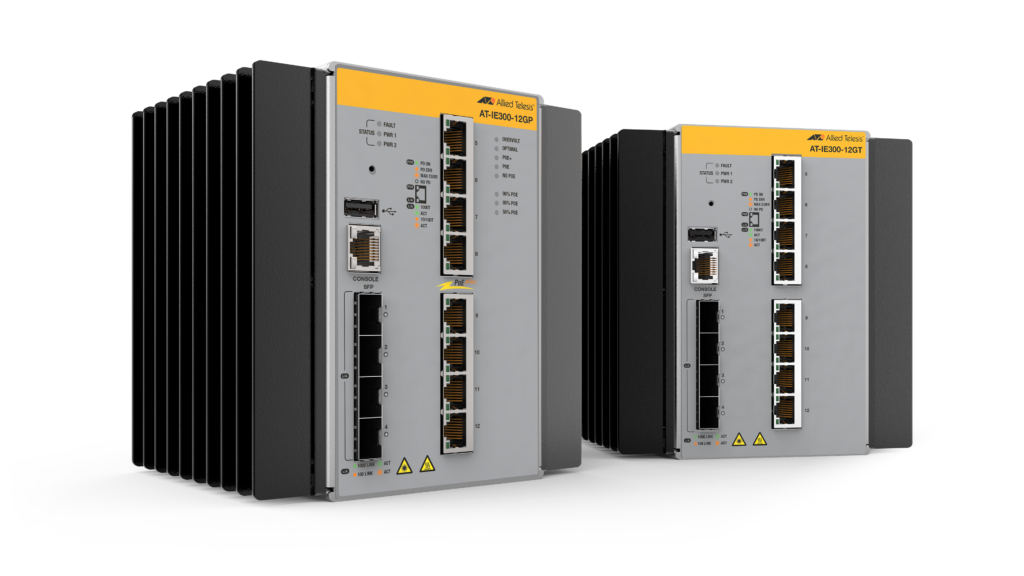

Built for enduring performance in harsh environments. This series delivers the performance and reliability demanded by industrial deployments in the Internet of Things (IoT) age.
Overview
Key Features
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| IE300-12GP | 8 | 4 | 12 | 8 | 24Gbps | 17.8Mpps |
| IE300-12GT | 8 | 4 | 12 | – | 24Gbps | 17.8Mpps |
Physical
| Product | Width x Depth x Height | Weight | Enclosure | Mounting | Protection Rate |
|---|---|---|---|---|---|
| IE300-12GP | 146 x 127 x 152 mm (5.75 x 5.00 x 6.00 in) |
2.0 kg (4.5 lb) | Aluminium shell | DIN rail, wall mount | IP30 |
| IE300-12GT | 146 x 127 x 152 mm (5.75 x 5.00 x 6.00 in) |
2.0 kg (4.4 lb) | Aluminium shell | DIN rail, wall mount | IP30 |
Power Characteristics
| Product | Input Voltage | Cooling | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise |
|---|---|---|---|---|---|
| IE300-12GP | 48V DC *, 53.5V DC ** | Fanless | 30W | 102 BTU/hr | – |
| IE300-12GT | 12~55V DC | Fanless | 30W | 102 BTU/hr | – |
* sourcing IEEE 802.3at Type 1 (PoE)
** sourcing IEEE 802.3at Type 2 (PoE+, Hi-PoE)
Power over Ethernet
| Product | Full PoE Load* Max Power Consumption | Full PoE Load* Max Heat Dissipation | Full PoE Load* Noise | Max PoE Power | 15W Max PoE Sourcing Ports | 30W PoE+ Max PoE Sourcing Ports | 60W Hi-PoE Max PoE Sourcing Ports |
|---|---|---|---|---|---|---|---|
| IE300-12GP | 320W | 147 BTU/hr | – | 240W | 8 | 8 | 4 |
| IE300-12GT | – | – | – | – | – | – | – |
* The Max Power consumption at full PoE load includes PD’s consumption and margin. The cooling requirements of the switch are smaller than the power draw, because most of the load is dissipated at the PoE powered device (PD) and along the cabling.
Use these wattage and BTU ratings for facility capacity planning.
Ordering Information
The DIN rail and wall mount kits are included.
AT-IE300-12GP-80
8x 10/100/1000T, 4x 100/1000X SFP,
Industrial Ethernet, Layer 3 Switch, Hi-PoE Support
AT-IE300-12GT-80
8x 10/100/1000T, 4x 100/1000X SFP,
Industrial Ethernet, Layer 3 Switch
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-IE3-G8032 | IE300 series license for ITU-T G.8032 and Ethernet CFM | ITU-T G.8032 Ethernet CFM |
| AT-FL-IE3-L2-01 | IE300 Series Layer 2 Premium license | EPSR Master VLAN Translation VLAN double tagging (Q-in-Q) UDLD |
| AT-FL-IE3-L3-01 | IE300 Series Layer 3 Premium license | OSPF (256 routes) OSPFv3 (256 routes) BGP4 (256 routes) BGP4+ for IPv6 (256 routes) PIM-SM, DM and SSM PIMv6-SM and SSM RIP RIPng VRRP and VRRPv3 |
| AT-FL-IE3-MODB | IE300 Series Modbus/TCP license | Modbus/TCP |
| AT-FL-IE3-OF13-1YR | OpenFlow license | OpenFlow v1.3 for 1 year |
| AT-FL-IE3-OF13-5YR | OpenFlow license | OpenFlow v1.3 for 5 years |
