Allied Telesis FS750 Series Fast Ethernet WebSmart switches offer the simplicity of unmanaged switches with the performance and reliability of managed switches, providing a cost-effective solution for integrating management at the edge of the network.
Overview
- User-friendly, web-based management
- Simple Plug and Play usability
- Web-based management features such as port-based VLANs, 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues and 802.1x security support
- Centralized power with PoE+
Key Features
- Fiber media support via SFPs
- VLANs
- Quality of Service (QoS)
- IP Multicast Support
- IEEE 802.1x port-based, MAC-based and network access control
Certifications and Compliance
Trade Agreement Act (TAA)
TAA compliance is mandatory for US Government purchases to prove that products are manufactured only in the USA or other approved countries.
Specifications
| Product | Switching Capacity | Forwrding Capacity | Fan | Max Power Consumption | Operating Temperature | Weight | Width x Depth x Height |
|---|---|---|---|---|---|---|---|
| FS750/20 | 11.2Gbps | 8.3Mpps | Fanless | 7.6W | 0°-40°C (32°-104°F) |
2.2 kg (4.85 lb) | 330 x 180 x 44 mm (13 x 7.08 x 1.73 in) |
| FS750/28 | 12.8Gbps | 9.5Mpps | Fanless | 8.7W | 0°-40°C (32°-104°F) |
2.2 kg (4.85 lb) | 330 x 180 x 44 mm (13 x 7.08 x 1.73 in) |
| FS750/28PS | 12.8Gbps | 9.5Mpps | Fan | 241W | 0°-40°C (32°-104°F) |
5.0 kg (11.00 lb) | 440 x 210 x 44 mm (17.3 x 8.26 x 1.73 in) |
| FS750/52 | 17.6Gbps | 13.1Mpps | Fanless | 13.25W | 0°-40°C (32°-104°F) |
3.0 kg (6.61 lb) | 440 x 250 x 44 mm (17.3 x 9.8 x 1.73 in) |
Power Characteristics
| Product | Max PoE Power | Max PoE Enabled Ports | Max PoE+ Enabled Ports | Max Power Consumption PoE Off | Max Power Consumption PoE On | Voltage | Frequency |
|---|---|---|---|---|---|---|---|
| FS750/20 | – | – | – | 7.6W | – | 100-240V AC | 50-60Hz |
| FS750/28 | – | – | – | 8.7W | – | 100-240V AC | 50-60Hz |
| FS750/28PS | 193W | 24 | 4 (port1-4) | 18W | 241W | 100-240V AC | 50-60Hz |
| FS750/52 | – | – | – | 13.25W | – | 100-240V AC | 50-60Hz |
Â
Ordering Information
AT-FS750/20-xx(1)
16-port 10/100TX + 2 10/100/1000T + 2
SFP/1000T Combo Ports
AT-FS750/28-xx(1)
24-port 10/100TX + 2 10/100/1000T + 2
SFP/1000T Combo Ports
AT-FS750/28PS-xx(1)
24-port 10/100TX + 2 10/100/1000T + 2
SFP/1000T Combo Ports and PoE
AT-FS750/52-xx
48-port 10/100TX + 2 10/100/1000T + 2
SFP/1000T Combo Ports
(1) Trade Act Agreement compliant
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
All Models

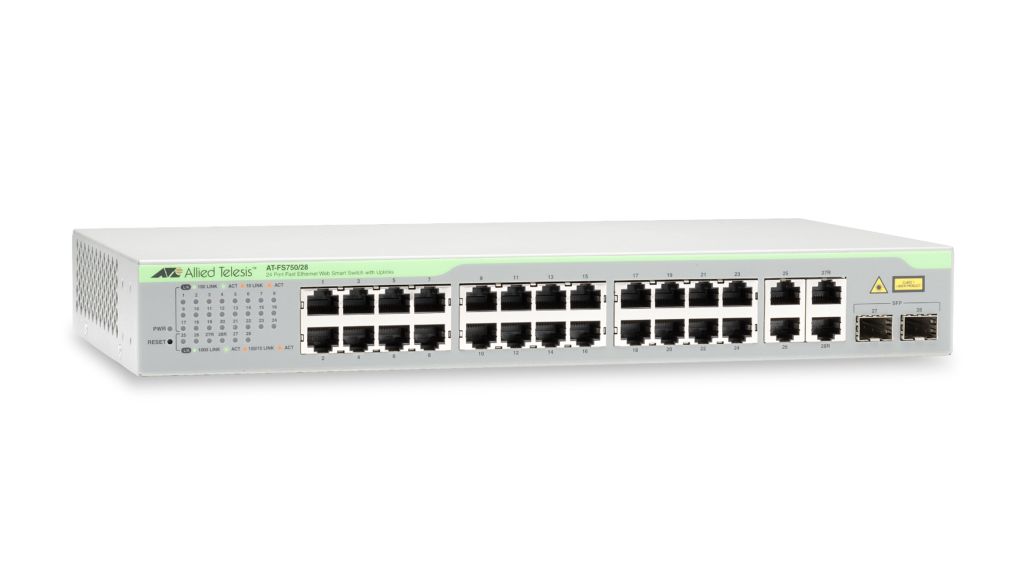

FS750/28
24-port 10/100TX + 2 10/100/1000T + 2 SFP/1000T Combo Ports
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
23 Jun 2026
23 Jun 2026
End of Software Support
End of Life
Alternate Products
FS750/52
48-port 10/100TX + 2 10/100/1000T + 2 SFP/1000T Combo Ports
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
19 Oct 2020
19 Oct 2020
19 Oct 2020
End of Software Support
19 Oct 2022
19 Oct 2022
19 Oct 2022
End of Life
19 Oct 2025
19 Oct 2025
19 Oct 2025
Alternate Products
FS750/28PS
24-port 10/100TX POE + 2 10/100/1000T + 2 SFP/1000T Combo Ports
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
23 Jun 2026
23 Jun 2026
End of Software Support
End of Life
Alternate Products
