The perfect solution for desktop and small networks—with internal and external power supply versions and network loop guard technology.
Overview
- Network loop guard technology
- Power-saving features like link-down power savings and cable length detection
- Provide simple and seamless connectivity to existing network infrastructure
- Easy set up and installation
- Backed by a lifetime limited warranty
Key Features
- EAP/BPDU passthrough
- Wirespeed performance
- Non-blocking architecture
- Auto-negotiation Gigabit ports
- Auto MDI/MDI-X on TX ports
- Full-duplex flow control
- Silent operation; fanless
- 0°C to 50°C operating temperature range
Certifications and Compliance
Trade Agreement Act (TAA)
TAA compliance is mandatory for US Government purchases to prove that products are manufactured only in the USA or other approved countries.
Specifications
| Product | Width x Depth x Height | Operating Temperature | Weight | Switching Capacity | Throughput | MAC Address | Power Current | Max Pwr Consumption |
|---|---|---|---|---|---|---|---|---|
| GS910/5 | 160 x 105 x 35 mm (6.29 x 4.13 x 1.37 in) |
0-50°C (32-122°F) |
0.5 kg (1.10 lb) | 10Gbps | 7.4Mpps | Max 2K | 0.1A | 3.1W |
| GS910/5E | 130 x 101 x 30 mm (5.11 x 3.97 x 1.18 in) |
0-50°C (32-122°F) |
0.72 kg (1.58 lb) | 10Gbps | 7.4Mpps | Max 2K | 0.1A | 3.6W |
| GS910/8 | 210 x 121 x 38 mm (8.26 x 4.76 x 1.49 in) |
0-50°C (32-122°F) |
0.78 kg (1.712 lb) | 16Gbps | 11.9Mpps | Max 4K | 0.2A | 4.5W |
| GS910/8E | 210 x 121 x 38 mm (8.26 x 4.76 x 1.49 in) |
0-50°C (32-122°F) |
0.72 kg (1.58 lb) | 16Gbps | 11.9Mpps | Max 4K | 0.2A | 5.0W |
| GS910/16 | 263 x 179 x 38 mm (10.35 x 7.04 x 1.49 in) |
0-50°C (32-122°F) |
1.5 kg (3.30 lb) | 32Gbps | 23.8Mpps | Max 8K | 0.3A | 12W |

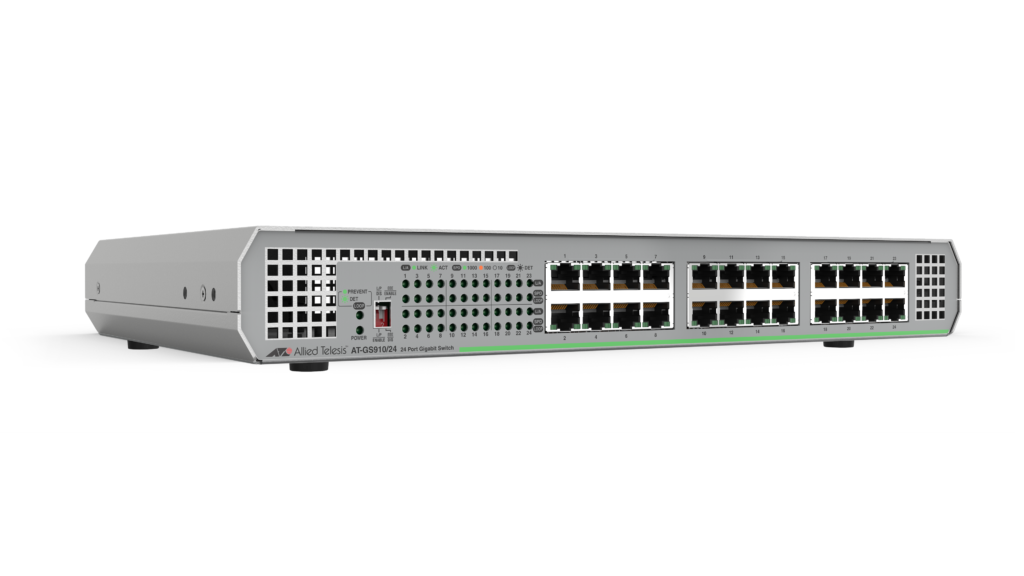

| GS910/24 | 341 x 210 x 44 mm (13.42 x 8.26 x 1.73 in) |
0-50°C (32-122°F) |
2.1 kg (4.62 lb) | 48Gbps | 35.7Mpps | Max 8K | 0.4A | 17W |
Â
Ordering Information
AT-GS910/5E
5-port 10/100/1000T unmanaged switch with
external PSU (AC adaptor)
AT-GS910/5-xx(1)
5-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/8E
8-port 10/100/1000T unmanaged switch with
external PSU (AC adaptor)
AT-GS910/8-xx
8-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/16-xx(1)
16-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/24-xx(1)
24-port 10/100/1000T unmanaged switch with
internal PSU
AT-RKMT-J08
Rack-mount kit for GS910/8, and 8E
AT-BRKT-J23
Wall mount kit for GS910/5, 8, and 8E
(1) Trade Act Agreement compliant
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
