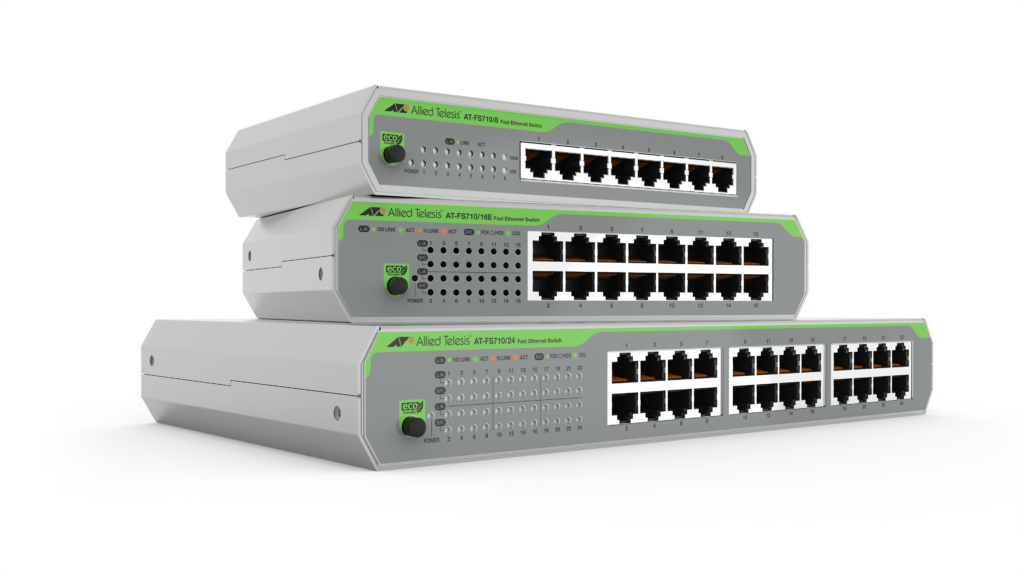

The Allied Telesis CentreCOM® FS710 Series is the ideal economical and eco-friendly solution for today’s networks, providing an extensive range of cost-effective options. The FS710 Series switches provide easy set-up, with silent operation and simple connectivity for desktop and small to medium network environments.
Overview
Key Features
Specifications
| Product | Width x Depth x Height | Weight | Mounting | Switching Capacity | Throughput | MAC Address | Max Power Consumption |
|---|---|---|---|---|---|---|---|
| FS710/5 | 131 x 101 x 30 mm (5.16 x 3.98 x 1.81 in) |
400 g | Desktop/Wall | 1Gbps | 0.74Mpps | 2K | 1.8W |
| FS710/5E | 131 x 101 x 30 mm (5.16 x 3.98 x 1.81 in) |
380 g | Desktop/Wall | 1Gbps | 0.74Mpps | 2K | 1.7W |
| FS710/8 | 196 x 124 x 38 mm (7.72 x 4.88 x 1.50 in) |
710 g | Desktop Rack with RKMT-J08 Wall with BRKT-J23 |
1.6Gbps | 1.19Mpps | 2K | 2.5W |
| FS710/8E | 196 x 124 x 38 mm (7.72 x 4.88 x 1.50 in) |
690 g | Desktop Rack with RKMT-J08 Wall with BRKT-J23 |
1.6Gbps | 1.19Mpps | 2K | 2.4W |
| FS710/16 | 210 x 124 x 44 mm (8.272 x 2.88 x 1.73 in) |
870 g | Desktop/Rack Wall with BRKT-J22 |
3.2Gbps | 2.38Mpps | 8K | 5.4W |
| FS710/16E | 210 x 124 x 44 mm (8.272 x 2.88 x 1.73 in) |
870 g | Desktop/Rack Wall with BRKT-J22 |
3.2Gbps | 2.38Mpps | 8K | 4.5W |
| FS710/24 | 305 x 180 x 44 mm (12.00 x 7.09 x 1.73 in) |
1.6 g | Desktop/Rack Wall with BRKT-J22 |
4.8Gbps | 3.57Mpps | 8K | 5.3W |
Ordering Information
AT-FS710/5-xx
5-port 10/100TX unmanaged switch
with internal PSU
AT-FS710/5E-xx
5-port 10/100TX unmanaged switch
with external PSU
AT-FS710/8-xx(1)
8-port 10/100TX unmanaged switch
with internal PSU
AT-FS710/8E-xx
8-port 10/100TX unmanaged switch
with external PSU
AT-FS710/16-xx*(1)
16-port 10/100TX unmanaged switch
with internal PSU
AT-FS710/16E-xx*
16-port 10/100TX unmanaged switch
with external PSU
AT-FS710/24-xx*
24-port 10/100TX unmanaged switch
with internal PSU
AT-BRKT-J22
Wall mount kit for FS710/16, 16E, 24
AT-BRKT-J23
Wall mount kit for FS710/8, 8E
AT-BRKT-J08
Rack mount kit for FS710/8, 8E
* Rack-mount kit is included
(1) Trade Act Agreement compliant
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
