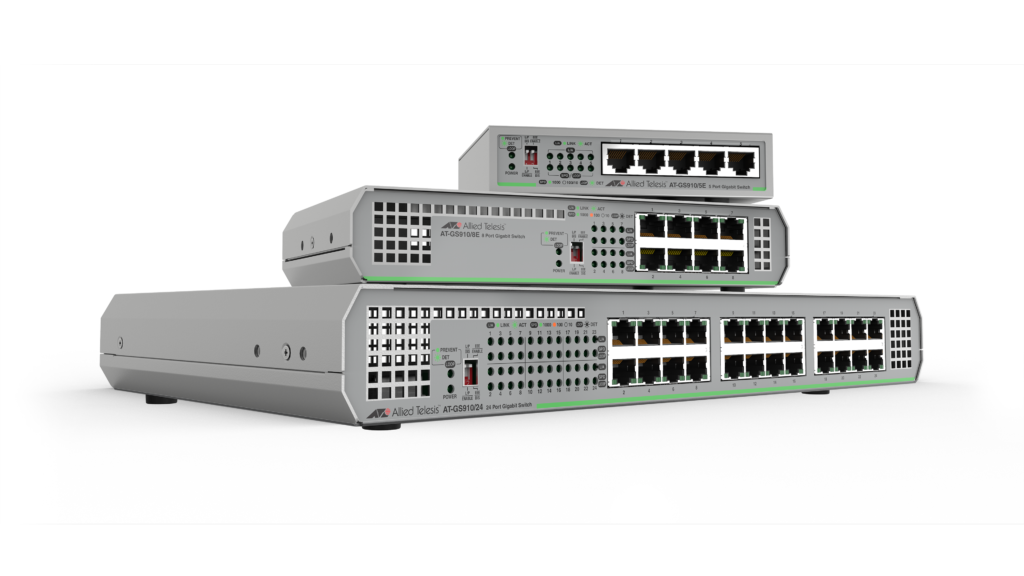

The perfect solution for desktop and small networks—with internal and external power supply versions and network loop guard technology.
Overview
Key Features
Specifications
| Product | Width x Depth x Height | Operating Temperature | Weight | Switching Capacity | Throughput | MAC Address | Power Current | Max Pwr Consumption |
|---|---|---|---|---|---|---|---|---|
| GS910/5 | 160 x 105 x 35 mm (6.29 x 4.13 x 1.37 in) |
0-50°C (32-122°F) |
0.5 kg (1.10 lb) | 10Gbps | 7.4Mpps | Max 2K | 0.1A | 3.1W |
| GS910/5E | 130 x 101 x 30 mm (5.11 x 3.97 x 1.18 in) |
0-50°C (32-122°F) |
0.72 kg (1.58 lb) | 10Gbps | 7.4Mpps | Max 2K | 0.1A | 3.6W |
| GS910/8 | 210 x 121 x 38 mm (8.26 x 4.76 x 1.49 in) |
0-50°C (32-122°F) |
0.78 kg (1.712 lb) | 16Gbps | 11.9Mpps | Max 4K | 0.2A | 4.5W |
| GS910/8E | 210 x 121 x 38 mm (8.26 x 4.76 x 1.49 in) |
0-50°C (32-122°F) |
0.72 kg (1.58 lb) | 16Gbps | 11.9Mpps | Max 4K | 0.2A | 5.0W |
| GS910/16 | 263 x 179 x 38 mm (10.35 x 7.04 x 1.49 in) |
0-50°C (32-122°F) |
1.5 kg (3.30 lb) | 32Gbps | 23.8Mpps | Max 8K | 0.3A | 12W |
| GS910/24 | 341 x 210 x 44 mm (13.42 x 8.26 x 1.73 in) |
0-50°C (32-122°F) |
2.1 kg (4.62 lb) | 48Gbps | 35.7Mpps | Max 8K | 0.4A | 17W |
Ordering Information
AT-GS910/5E
5-port 10/100/1000T unmanaged switch with
external PSU (AC adaptor)
AT-GS910/5-xx(1)
5-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/8E
8-port 10/100/1000T unmanaged switch with
external PSU (AC adaptor)
AT-GS910/8-xx
8-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/16-xx(1)
16-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/24-xx(1)
24-port 10/100/1000T unmanaged switch with
internal PSU
AT-RKMT-J08
Rack-mount kit for GS910/8, and 8E
AT-BRKT-J23
Wall mount kit for GS910/5, 8, and 8E
(1) Trade Act Agreement compliant
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
