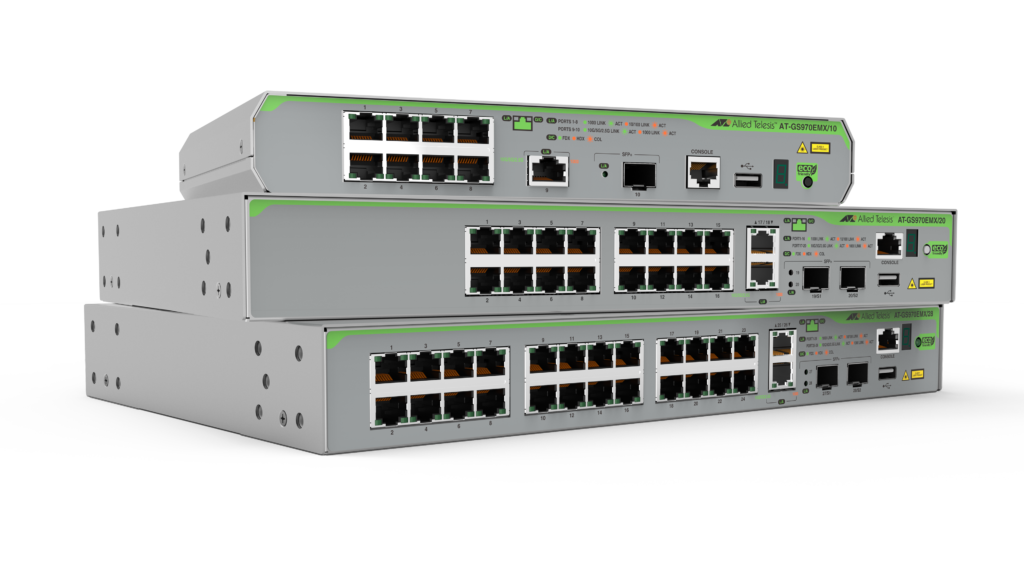

The CentreCOM GS970EMX series Layer 3 Lite switches provide Gigabit connectivity with Multi-Gigabit copper and 10 Gigabit fiber uplinks. They provide a comprehensive feature-set with fanless models, making them ideal for secure and cost-effective access in small to medium business networks. Stackable models add flexibility and resilience with the ability to easily increase port density.
Overview
Key Features
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 1/2.5/5/10G Copper Ports | 1/10G SFP+ Ports | Total Ports | Stacking Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|---|
| GS970EMX/10 | 8 | 1 | 1 | 10 | – | 56Gbps | 41.6Mpps |
| GS970EMX/20 | 16 | 2 | 2 | 20 | 4 | 72Gbps | 83.3Mpps |
| GS970EMX/28 | 24 | 2 | 2 | 28 | 4 | 128Gbps | 95.2Mpps |
| GS970EMX/52 | 48 | 2 | 2 | 52 | 4 | 176Gbps | 130.9Mpps |
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| GS970EMX/10 | 263 x 179 x 38 mm (10.35 x 7.04 x 1.49 in) |
Rack-mount | 1.6 kg (3.53 lb) | 2.97 kg (6.55 lb) | 462 x 258 x 107 mm (18.19 x 10.15 x 4.21 in) |
| GS970EMX/20 | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
Rack-mount | 3.0 kg (6.61 lb) | 4.42 kg (9.74 lb) | 530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in) |
| GS970EMX/28 | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
Rack-mount | 3.1 kg (6.84 lb) | 4.2 kg (9.26 lb) | 530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in) |
| GS970EMX/52 | 441 x 323 x 44 mm (17.36 x 12.71 x 1.73 in) |
Rack-mount | 4.5 kg (9.92 lb) | 6.20 kg (13.66 lb) | 530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in) |
Power Characteristics
| Product | Max Power Consumption (W) | Max Heat Dissipation (BTU/h) | Noise (DBA) |
|---|---|---|---|
| GS970EMX/10 | 21 | 71 | Fanless |
| GS970EMX/20 | 28 | 96 | Fanless |
| GS970EMX/28 | 33 | 114 | Fanless |
| GS970EMX/52 | 52 | 181 | 45.4 |
Ordering Information
Model availability can vary between regions. Please check to see which models are available in your region.
AT-GS970EMX/10-xx
8-port 10/100/1000T switch with 1x 1/2.5/5/10
Gigabit copper uplink, 1x SFP/SFP+ slot, and a
single fixed power supply
AT-GS970EMX/20-xx
16-port 10/100/1000T switch with 2x 1/2.5/5/10
Gigabit copper uplinks, 2x SFP/SFP+ slots, and a
single fixed power supply
AT-GS970EMX/28-xx
24-port 10/100/1000T switch with 2x 1/2.5/5/10
Gigabit copper uplinks, 2x SFP/SFP+ slots, and a
single fixed power supply
AT-GS970EMX/52-xx
48-port 10/100/1000T switch with 2x 1/2.5/5/10
Gigabit copper uplinks, 2x SFP/SFP+ slots, and a
single fixed power supply
AT-RKMT-J05
Rack Mount Tray for GS970EMX/10
AT-RKMT-J13
Rack Mount Kit for GS970EMX/20 and GS970EMX/28
AT-RKMT-SL01
Sliding rackmount kit for GS970EMX/52
AT-BRKT-J23
Wall mount kit for GS970EMX/10
AT-BRKT-J24
Wall mount kit for GS970EMX/20 and GS970EMX/28
AT-VT-Kit3
Management Cable (USB to Serial Console)
AT-STND-J03
Stand-kit for GS970EMX/20 and GS970EMX/28
Where xx =
10 for US power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Feature Licenses
| Name | Description | Includes | Stack Licensing |
|---|---|---|---|
| AT-FL-G97EMX-01 | GS970EMX Premium license | Static Route(1) (128 routes) RIP(1) (256 routes) OSPFv2(1) (128 routes) PIMv4-SM, DM and SSM v4 EPSR Master(2) |
One license per stack member |
(1) The standard switch software supports 16 Static, RIP, and OSPF routes
(2) The standard switch software supports EPSR transit mode
