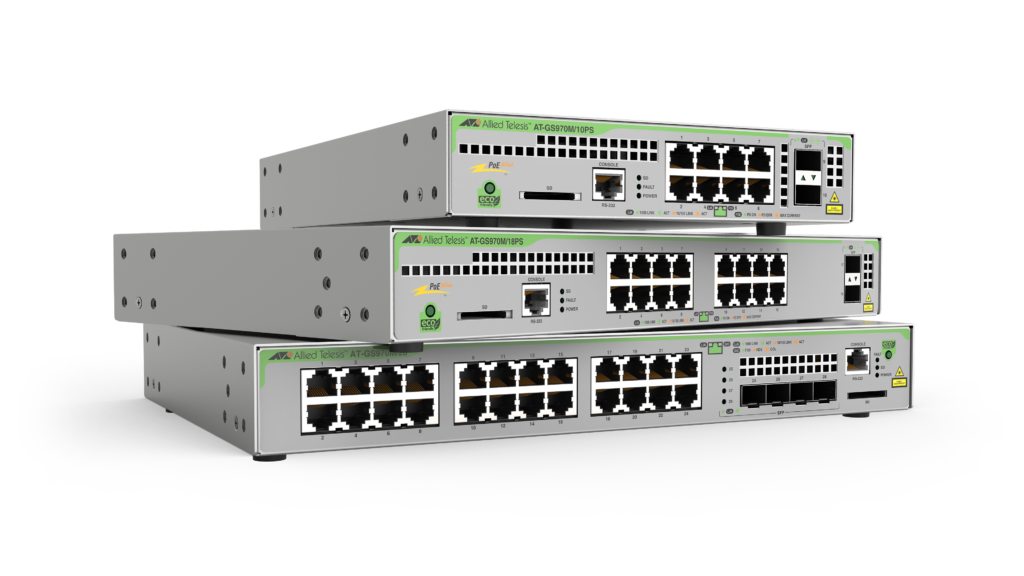

The GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview
Key Features
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| GS970M/10PS | 8 | 2 | 10 | 8 | 20Gbps | 14.9Mpps |
| GS970M/10 | 8 | 2 | 10 | – | 20Gbps | 14.9Mpps |
| GS970M/18PS | 16 | 2 | 18 | 16 | 36Gbps | 26.8Mpps |
| GS970M/18 | 16 | 2 | 18 | – | 36Gbps | 26.8Mpps |
| GS970M/28PS | 24 | 4 | 28 | 24 | 56Gbps | 41.7Mpps |
| GS970M/28 | 24 | 4 | 28 | – | 56Gbps | 41.7Mpps |
Physical
| Product | Width x Depth x Height | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|
| GS970M/10PS | 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in) |
2.1 kg (4.6 lb) | 3.45 kg (7.6 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| GS970M/10 | 265 x 180 x 42.5 mm (10.43 x 7.08 x 1.67 in) |
1.5 kg (3.3 lb) | 2.85 kg (6.3 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| GS970M/18PS | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
3.0 kg (6.6 lb) | 4.35 kg (9.6 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| GS970M/18 | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
2.4 kg (5.3 lb) | 4.0 kg (8.8 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| GS970M/28PS | 440 x 290 x 44 mm (17.32 x 11.42 x 1.73 in) |
4.7 kg (10.4 lb) | 6.35 kg (14.0 lb) | 53 x 43 x 15 cm (20.86 x 16.93 x 5.90 in) |
| GS970M/28 | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
2.4 kg (5.3 lb) | 4.0 kg (8.8 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load Max Power Consumption | Full PoE+ Load Max Heat Dissipation | Full PoE+ Load Noise | Max PoE Power | Max PoE Ports at 15W Per Port | Max PoE+ Ports at 30W Per Port |
|---|---|---|---|---|---|---|---|---|---|
| GS970M/10PS | 16W | 55 BTU/h | 33 dBA | 180W | 126 BTU/h | 41 dBA | 124W | 8 | 4 |
| GS970M/10 | 16W | 55 BTU/h | Fanless | – | – | – | – | – | – |
| GS970M/18PS | 21W | 72 BTU/h | 34 dBA | 330W | 169 BTU/h | 42 dBA | 247W | 16 | 8 |
| GS970M/18 | 18W | 61 BTU/h | 29 dBA | – | – | – | – | – | – |
| GS970M/28PS | 37W | 127 BTU/h | 33 dBA | 520W | 303 BTU/h | 42 dBA | 370W | 24 | 12 |
| GS970M/28 | 26W | 89 BTU/h | 34 dBA | – | – | – | – | – | – |
Ordering Information
AT-GS970M/10PS-R-xx(1)
L3 switch with 8 x 10/100/1000T PoE ports and
2 x 100/1000X SFP ports with rack mount kit
AT-GS970M/10-xx
L3 switch with 8 x 10/100/1000T ports and
2 x 100/1000X SFP ports
AT-GS970M/18PS-R-xx(1)
L3 switch with 16 x 10/100/1000T PoE ports and
2 x 100/1000X SFP ports with rack mount kit
AT-GS970M/18-xx
L3 switch with 16 x 10/100/1000T ports and
2 x 100/1000X SFP ports
AT-GS970M/28PS-xx
L3 switch with 24 x 10/100/1000T PoE ports and
4 x 100/1000X SFP ports
AT-GS970M/28-xx
L3 switch with 24 x 10/100/1000T ports and
4 x 100/1000X SFP ports
AT-RKMT-J05
Rack mount kit for GS970M/10
AT-RKMT-J13
Rack mount kit for GS970M/18 and 18PS
AT-RKMT-J14
Rack mount kit for GS970M/10PS
AT-RKMT-J15
Rack mount shelf kit for two GS970M/10 units
AT-BRKT-J23
Wall mount kit for GS970M/10
AT-BRKT-J24
Wall mount kit for GS970M/18, 28, 10PS,
18PS and 28PS
(1) PS-R models only available in North America and Asia Pacific regions
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-GS97-UDLD | UniDirectional Link Detection | UDLD |
