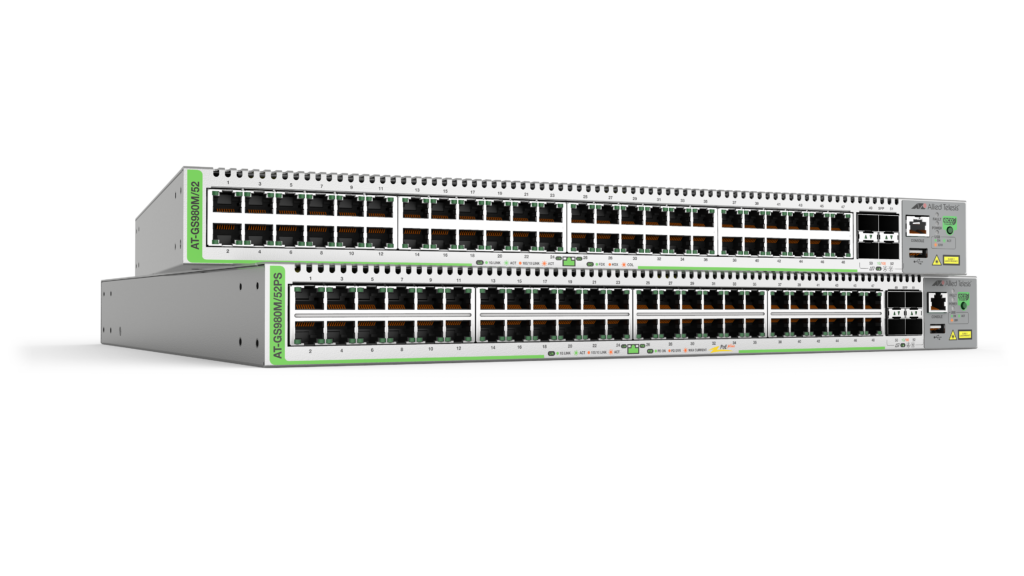

The Allied Telesis CentreCOM GS980M Series of Layer 3 Gigabit switches enable a cost-effective and fully managed network. A high-density, space saving solution, with Power over Ethernet (PoE+) to connect and power devices such as video surveillance cameras and IP phones, makes the GS980M Series ideal for applications at the network edge.
Overview
Key Features
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Max PoE+ Enabled | Total Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| GS980M/52PS | 48 | 4 | 48 | 52 | 104Gbps | 77.4Mpps |
| GS980M/52 | 48 | 4 | – | 52 | 104Gbps | 77.4Mpps |
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| GS980M/52PS | 441 x 359 x 44 mm (17.36 x 14.13 x 1.73 in) |
1RU Rack-mount | 5.8 kg (12.79 lbs) | 7.8 kg (17.20 lbs) | 575 x 520 x 150 mm (22.64 x 20.47 x 5.90 in) |
| GS980M/52 | 441 x 323 x 44 mm (17.36 x 12.72 x 1.73 in) |
1RU Rack-mount | 4.5 kg (9.92 lbs) | 6.4 kg (14.12 lbs) | 575 x 445 x 150 mm (22.64 x 17.52 x 5.90 in) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load (PWR800) Max Power Consumption | Full PoE+ Load (PWR800) Max Heat Dissipation | Full PoE+ Load (PWR800) Noise | PoE Budget Power | 15W PoE Sourcing Ports | 30W PoE+ PoE Sourcing Ports |
|---|---|---|---|---|---|---|---|---|---|
| GS980M/52PS | 48W | 164 BTU/h | 42 dBA | 909W | 3012 BTU/h | 42 dBA | 740W | 48 | 24 |
| GS980M/52 | 47W | 160 BTU/h | 39 dBA | – | – | – | – | – | – |
Ordering Information
AT-GS980M/52-xx
48 10/100/1000T switch with 4 SFP slots
AT-GS980M/52PS-xx
48 10/100/1000T-POE+ switch with 4 SFP slots
19 inch rack-mount brackets included
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-GS98M-CP | Continuous PoE license | CPoE |
All Models
