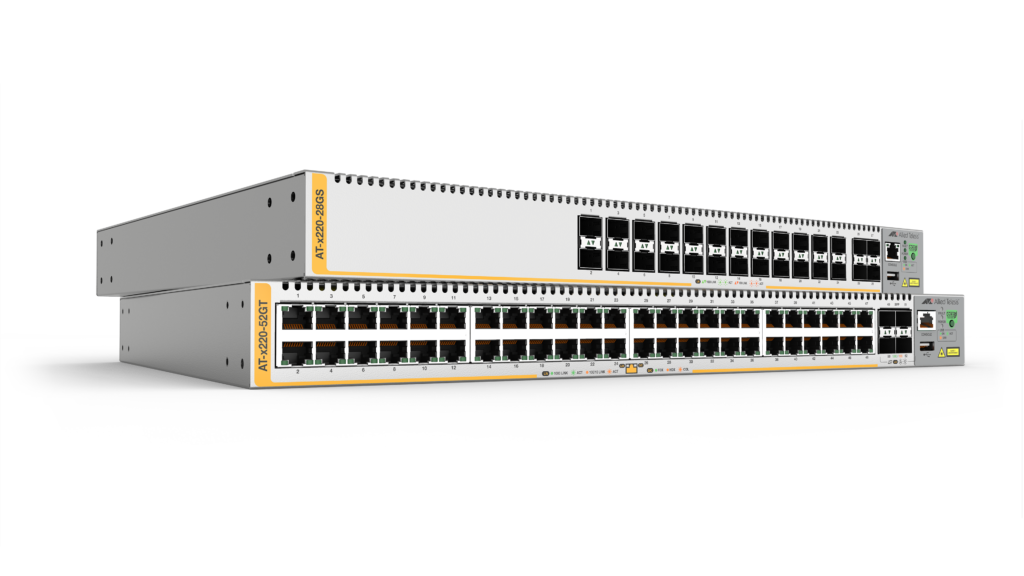

The Allied Telesis x220 Series are fully managed high-performing Gigabit Layer 3 switches. Integrated security features, and 28 SFP or 48 Gigabit copper ports, enable long-distance fiber, or high-density copper connectivity at the edge of the network.
Overview
Key Features
Specifications
| Product | 10/100/1000T Copper Ports | 100/1000X SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| x220-28GS | – | 28 | 28 | – | 56Gbps | 41.7Mpps |
| x220-52GP | 48 | 4 | 52 | 48 | 104Gbps | 77.4Mpps |
| x220-52GT | 48 | 4 | 52 | – | 104Gbps | 77.4Mpps |
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| x220-28GS | 441 x 323 x 44 mm (17.36 x 12.72 x 1.73 in) |
1RU Rack-mount | 4.3 kg (9.47 lbs) | 6.1 kg (13.45 lbs) | 575 x 445 x 150 mm (22.64 x 17.52 x 5.90 in) |
| x220-52GP | 441 x 359 x 44 mm (17.36 x 14.13 x 1.73 in) |
1RU Rack-mount | 5.8 kg (12.79 lbs) | 7.8 kg (17.20 lbs) | 575 x 520 x 150 mm (22.64 x 20.47 x 5.90 in) |
| x220-52GT | 441 x 323 x 44 mm (17.36 x 12.72 x 1.73 in) |
1RU Rack-mount | 4.5 kg (9.92 lbs) | 6.4 kg (14.12 lbs) | 575 x 445 x 150 mm (22.64 x 17.52 x 5.90 in) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load (PWR800) Max Power Consumption | Full PoE+ Load (PWR800) Max Heat Dissipation | Full PoE+ Load (PWR800) Noise | PoE Budget Power | 15W PoE Sourcing Ports | 30W PoE+ PoE Sourcing Ports |
|---|---|---|---|---|---|---|---|---|---|
| x220-28GS | 52W | 179 BTU/h | 39 dBA | – | – | – | – | – | – |
| x220-52GP | 48W | 164 BTU/h | 42 dBA | 909W | 577 BTU/h | 42 dBA | 740W | 48 | 24 |
| x220-52GT | 47W | 160 BTU/h | 39 dBA | – | – | – | – | – | – |
Ordering Information
AT-x220-28GS-xx
28-port 100/1000X SFP switch
AT-x220-52GP-xx
48-port 10/100/1000T-POE+ switch with 4 SFP
uplink ports and single fixed PSU
AT-x220-52GT-xx
48-port 10/100/1000T switch with 4 SFP uplink
ports and single fixed PSU
AT-VT-Kit3
Management Cable (USB to Serial Console)
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
19 inch rack-mount brackets included with every switch
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-x220-8032 | ITU-T G.8032 license | G.8032 ring protection Ethernet CFM |
| AT-FL-x220-CPOE | Continuous PoE license | Continuous PoE power for x220-52GP only |
