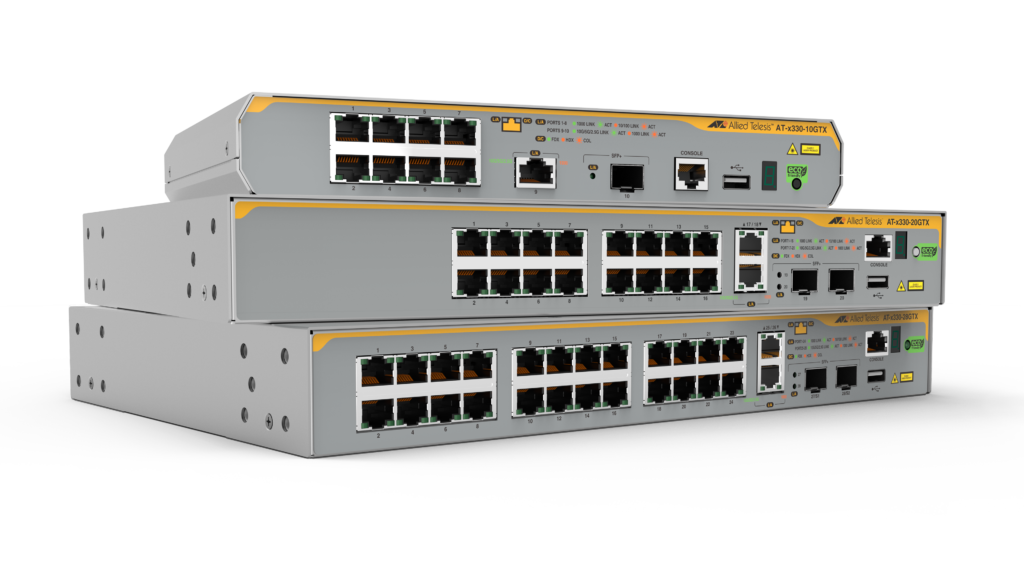

The Allied Telesis x330 Series Layer 3 switches provide an excellent access solution supporting Gigabit to the desktop for maximum performance. Multi-Gigabit copper and 10 Gigabit fiber uplinks, plus fanless models for silent operation, make them ideal for the edge of business networks. Stackable models add flexibility and enable deployment as a resilient small branch office network core.
Overview
Key Features
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 1/2.5/5/10G Copper Ports | 1/10G SFP+ Ports | Total Ports | Stacking Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|---|
| x330-10GTX | 8 | 1 | 1 | 10 | – | 52Gbps | 41.6Mpps |
| x330-20GTX | 16 | 2 | 2 | 20 | 4 | 72Gbps | 83.3Mpps |
| x330-28GTX | 24 | 2 | 2 | 28 | 4 | 128Gbps | 95.2Mpps |
| x330-52GTX | 48 | 2 | 2 | 52 | 4 | 176Gbps | 130.9Mpps |
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| x330-10GTX | 263 x 179 x 38 mm (10.35 x 7.04 x 1.49 in) |
Rack-mount | 1.6 kg (3.53 lb) | 2.97 kg (6.55 lb) | 462 x 258 x 107 mm (18.19 x 10.15 x 4.21 in) |
| x330-20GTX | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
Rack-mount | 3.0 kg (6.61 lb) | 4.42 kg (9.74 lb) | 530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in) |
| x330-28GTX | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
Rack-mount | 3.1 kg (6.84 lb) | 4.42 kg (9.74 lb) | 530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in) |
| x330-52GTX | 441 x 323 x 44 mm (17.36 x 12.71 x 1.73 in) |
Rack-mount | 4.5 kg (9.92 lb) | 6.20 kg (13.66 lb) | 530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in) |
Power Characteristics
| Product | Max Power Consumption (W) | Max Heat Dissipation (BTU/h) | Noise (DBA) |
|---|---|---|---|
| x330-10GTX | 19 | 65 | Fanless |
| x330-20GTX | 28 | 96 | Fanless |
| x330-28GTX | 33 | 114 | Fanless |
| x330-52GTX | 52 | 181 | 45.4 |
Ordering Information
Model availability can vary between regions. Please check to see which models are available in your region.
AT-x330-10GTX-xx
8-port 10/100/1000T switch, with 1 x
1/2.5/5/10G copper port, 1 x SFP/SFP+ port,
and 1 fixed PSU
AT-x330-20GTX-xx
16-port 10/100/1000T switch, with 2 x
1/2.5/5/10G copper ports, 2 x SFP/SFP+ ports,
and 1 fixed PSU
AT-x330-28GTX-xx
24-port 10/100/1000T switch, with 2 x
1/2.5/5/10G copper ports, 2 x SFP/SFP+ ports,
and 1 fixed PSU
AT-x330-52GTX-xx
48-port 10/100/1000T switch, with 2 x
1/2.5/5/10G copper ports, 2 x SFP/SFP+ ports,
and 1 fixed PSU
AT-RKMT-J05
Rack Mount Tray for x330-10GTX
AT-RKMT-J13
Rack Mount Kit for x330-20GTX and 28GTX
AT-RKMT-SL01
Sliding rackmount kit for x330-52GTX
AT-BRKT-J23
Wall mount kit for x330-10GTX
AT-BRKT-J24
Wall mount kit for x330-20GTX and x330-28GTX
AT-VT-Kit3
Management Cable (USB to Serial Console)
AT-STND-J03
Stand-kit for AT-x330-28GTX
Where xx =
10 for US power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Feature Licenses
| Name | Description | Includes | Stack Licensing |
|---|---|---|---|
| AT-FL-x330-01 | x330 Premium license | OSPF(1) (256 routes) PIMv4-SM, DM and SSM v4 RIPng(2) (256 routes) OSPFv3(2) (256 routes) PIM-SMv6/SSMv6 MLD v1/v2 VLAN double tagging (Q-in-Q) VLAN translation |
One license per stack member |
| AT-FL-x330-8032 | ITU-T G.8032 license | G.8032 ring protection Ethernet CFM |
One license per stack member |
| AT-FL-x330-OF13-1YR | OpenFlow license | OpenFlow v1.3 for 1 year | Not supported on a stack |
| AT-FL-x330-OF13-5YR | OpenFlow license | OpenFlow v1.3 for 5 years | Not supported on a stack |
(1) The standard switch software supports 1,000 IPv4 Static, 256 RIP, and 64 OSPF routes
(2) The standard switch software supports 1,000 IPv6 Static, and no RIPng or OSPFv3 routes
