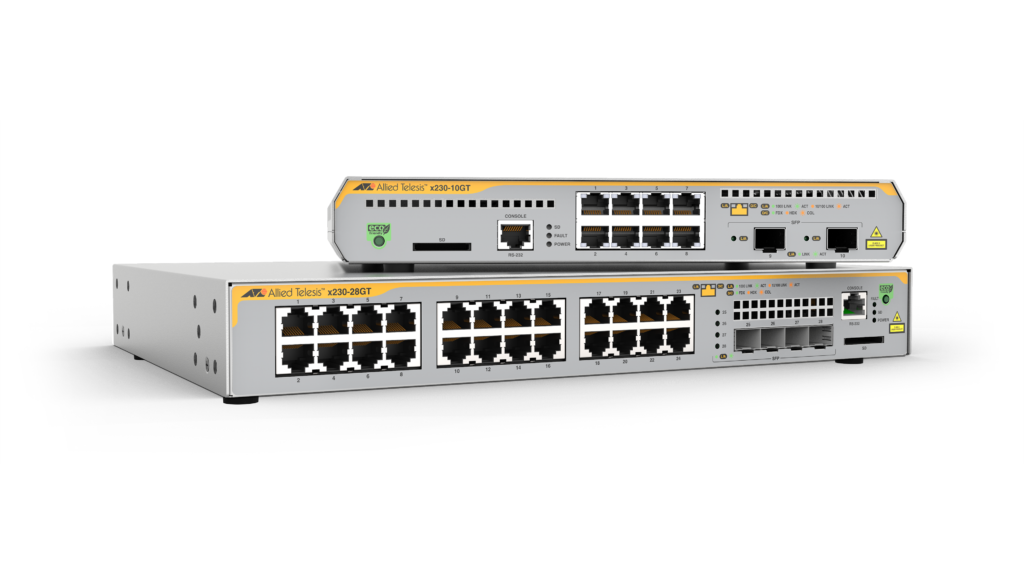

Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.
Overview
Key Features
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| x230-10GP | 8 | 2 | 10 | 8 | 20Gbps | 14.9Mpps |
| x230-10GT | 8 | 2 | 10 | – | 20Gbps | 14.9Mpps |
| x230-18GP | 16 | 2 | 18 | 16 | 36Gbps | 26.8Mpps |
| x230-18GT | 16 | 2 | 18 | – | 36Gbps | 26.8Mpps |
| x230-28GP | 24 | 4 | 28 | 24 | 56Gbps | 41.7Mpps |
| x230-28GT | 24 | 4 | 28 | – | 56Gbps | 41.7Mpps |
| x230L-17GT | 16 | 1 | 17 | – | 34Gbps | 25.3Mpps |
| x230L-26GT | 24 | 2 | 26 | – | 52Gbps | 38.7Mpps |
Physical
| Product | Width x Depth x Height | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|
| x230-10GP | 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in) |
2.1 kg (4.6 lb) | 3.45 kg (7.6 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| x230-10GT | 265 x 180 x 42.5 mm (10.43 x 7.08 x 1.67 in) |
1.5 kg (3.3 lb) | 2.85 kg (6.3 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| x230-18GP | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
3.0 kg (6.6 lb) | 4.35 kg (9.6 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| x230-18GT | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
2.4 kg (5.3 lb) | 4.0 kg (8.8 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| x230-28GP | 440 x 290 x 44 mm (17.32 x 11.42 x 1.73 in) |
4.7 kg (10.4 lb) | 6.35 kg (14.0 lb) | 53 x 43 x 15 cm (20.86 x 16.93 x 5.90 in) |
| x230-28GT and x230L-26GT | 341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in) |
2.4 kg (5.3 lb) | 4.0 kg (8.8 lb) | 43 x 36 x 15 cm (16.93 x 14.17 x 5.90 in) |
| x230L-17GT | 341 x 210 x 44 mm (13.42 x 8.27 x 1.73 in) |
2.2 kg (4.85 lb) | 3.4 kg (7.5 lb) | 43.5 x 40 x 14.5 cm (17.13 x 15.71 x 5.71 in) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load Max Power Consumption | Full PoE+ Load Max Heat Dissipation | Full PoE+ Load Noise | Max PoE Power | Max PoE Ports at 15W Per Port | Max PoE+ Ports at 30W Per Port |
|---|---|---|---|---|---|---|---|---|---|
| x230-10GP | 16W | 55 BTU/hr | 33 dBA | 180W | 126 BTU/hr | 41 dBA | 124W | 8 | 4 |
| x230-10GT | 16W | 55 BTU/hr | Fanless | – | – | – | – | – | – |
| x230-18GP | 21W | 72 BTU/hr | 34 dBA | 330W | 169 BTU/hr | 42 dBA | 247W | 16 | 8 |
| x230-18GT | 18W | 61 BTU/hr | 29 dBA | – | – | – | – | – | – |
| x230-28GP | 37W | 127 BTU/hr | 34 dBA | 520W | 303 BTU/hr | 42 dBA | 370W | 24 | 12 |
| x230-28GT | 26W | 89 BTU/hr | 34 dBA | – | – | – | – | – | – |
| x230L-17GT | 15W | 51 BTU/hr | Fanless | – | – | – | – | – | – |
| x230L-26GT | 20.5W | 70 BTU/hr | Fanless | – | – | – | – | – | – |
Ordering Information
AT-x230-10GP-xx(1)
L3 switch with 8 x 10/100/1000T PoE ports and
2 x 100/1000X SFP ports
AT-x230-10GT-xx
L3 switch with 8 x 10/100/1000T ports and
2 x 100/1000X SFP ports
AT-x230-18GP-xx(1)
L3 switch with 16 x 10/100/1000T PoE ports and
2 x 100/1000X SFP ports
AT-x230-18GT-xx
L3 switch with 16 x 10/100/1000T ports and
2 x 100/1000X SFP ports
AT-x230-28GP-xx(1)
L3 switch with 24 x 10/100/1000T PoE ports and
4 x 100/1000X SFP ports
AT-x230-28GT-xx
L3 switch with 24 x 10/100/1000T ports and
4 x 100/1000X SFP ports
AT-x230L-17GT-xx
L3 switch with 16 x 10/100/1000T ports and
1 x 100/1000X SFP port
AT-x230L-26GT-xx
L3 switch with 24 x 10/100/1000T ports and
2 x 100/1000X SFP ports
AT-RKMT-J05
Rack mount kit for x230-10GT
AT-RKMT-J13
Rack mount kit for x230-18GP/18GT, x230L-17GT
AT-RKMT-J14
Rack mount kit for x230-10GP
AT-STND-J03
Stand-kit for AT-x230L-17/26GT,
AT-x230-18/28GT, and AT-x230-10/18GP
(1) Trade Act Agreement compliant
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-x230-QinQ | VLAN double tagging (Q-in-Q) license | VLAN Q-in-Q |
| AT-FL-x230-OF13-1YR | OpenFlow license | OpenFlow v1.3 for 1 year |
| AT-FL-x230-OF13-5YR | OpenFlow license | OpenFlow v1.3 for 5 years |
| AT-FL-x230-UDLD | UniDirectional Link Detection | UDLD |
| AT-FL-230-PTP | PTP (IEEE 1588v2) license | PTP Transparent Mode |
| AT-FL-x230-8032 | ITU-T G.8032 license | G.8032 ring protection Ethernet CFM |
